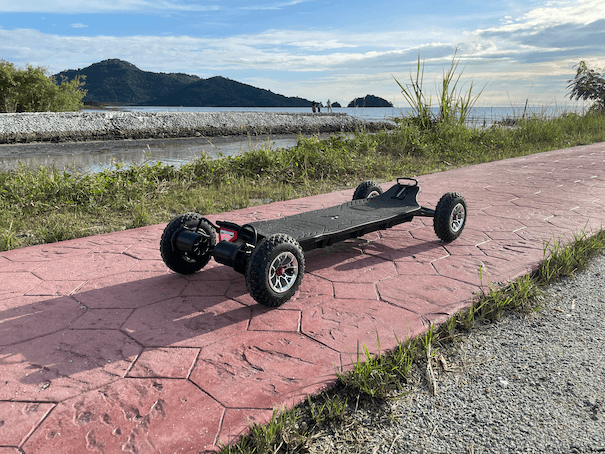

Acedeck has been making top-of-the-line boards for electric skateboard enthusiasts. The Acedeck Nyx Z3 and the Nomad N3 are both incredible machines that cost a fortune, but Acedeck is pushing the envelope further with their latest flagship model, the Acedeck Horizon.
Check out our review of the Acedeck Nyx Z3.
This board is truly made for the 1% of people who want the absolute best electric skateboard and are willing to spend $2000. You absolutely get what you pay for.
But first, let’s get into the specs.
Acedeck Horizon Specs:
| Horizon (1036Wh) $1,999 | Horizon (1036Wh) $2,299 | Horizon (1554Wh) $2,999 | Horizon Elite (2072Wh) $3,399 | |
| Trucks | Precision CNC Trucks 405mm / 16 inches wide | Independent suspension truck with EXA shock absorber | ||
| Battery | 14S4P Samsung 50S | 14S6P Samsung 50S | 14S8P Samsung 50S | |
| Range | 34.2 miles / 55km | 52.8 miles / 85km | 68.4 miles / 110km | |
| Motors | DXW 6384 150KV | DXW 6890 150KV | ||
| Top Speed | 37.5mph / 60kph | 43.75mph/ 70kph | ||
| Wheels | AT 8 inches (200*50mm) Pneumatic wheels | AT 8.5 inches (215*70mm) Pneumatic wheels | ||
| ESC | 14s Custom ESC (Hobbywing-ish) | |||
| Deck | Maple and Fiberglass Composite | |||
| Weight | 42 lbs / 19.05kg | 46 lbs / 21.06kg | 58 lbs / 26.45kg | 63 lbs / 28.65kg |

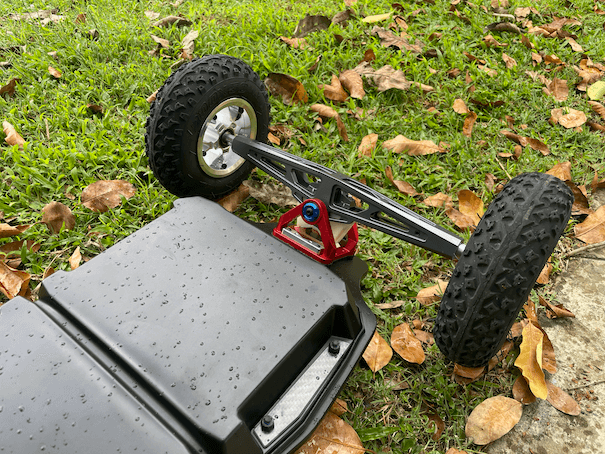

Truck Options & Pricing
Acedeck Horizon currently has four price points, with the trucks being the first major factor affecting the price.
Here’s the $2000 base version, which comes with channel trucks similar to those found on the Acedeck Nyx Z1. Acedeck calls these the “Nyx channel trucks,” as opposed to a $300 pricier version equipped with “independent suspension trucks.”

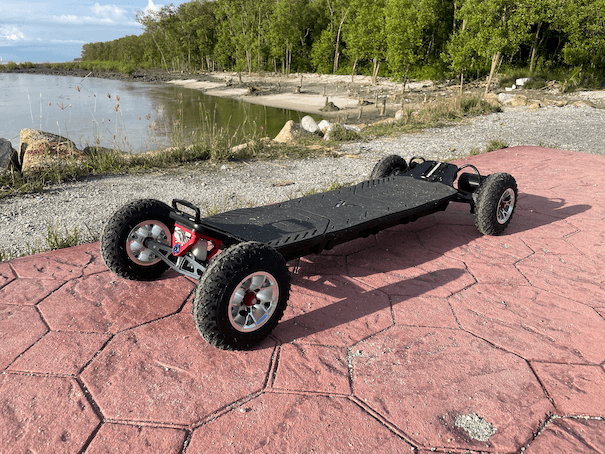

Our Acedeck Nyx Z3 was equipped with suspension trucks. These systems allow the four wheels to move independently, providing a smoother ride over rough terrain. If you’re looking for a true off-road board that can handle mountain trails, suspension trucks are the way to go.
For those who prefer a truck and ride feel closer to traditional skateboarding, the Nyx channel trucks offer that experience. They also feel more responsive and easier to turn. However, based on our expertise with Acedeck’s trucks, the suspension trucks are easier to turn than they appear and have a smaller turning radius than you might expect.
Switching from suspension trucks to channel trucks will also reduce the weight by about 4 lbs (2 kg), but going from 46 lbs to 42 lbs (21.06kg to 19.05kg) is hardly noticeable. No matter which truck or battery configuration you choose, this is a very heavy board.

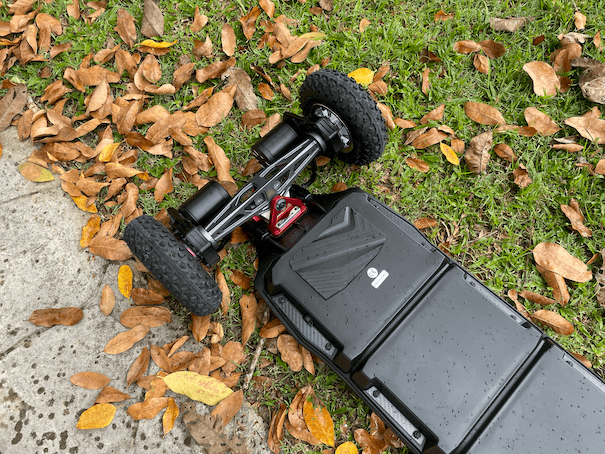

Battery Options & Performance
Now, let’s move on to the power source. The Horizon offers three battery configurations: 14S4P, 14S6P, and 14S8P. All versions use Samsung 50S cells, the most commonly used cell for premium electric skateboards.
Our board is equipped with a 20Ah 1036Wh battery, which provides a range of 34.2 miles (55 km). However, if you go all-in with the 14S8P 40Ah 2072Wh battery, you can extend that range to an incredible 68.4 miles (110 km) on a single charge.

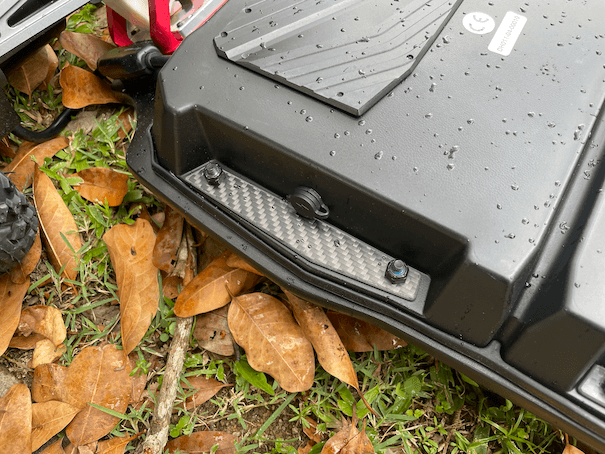

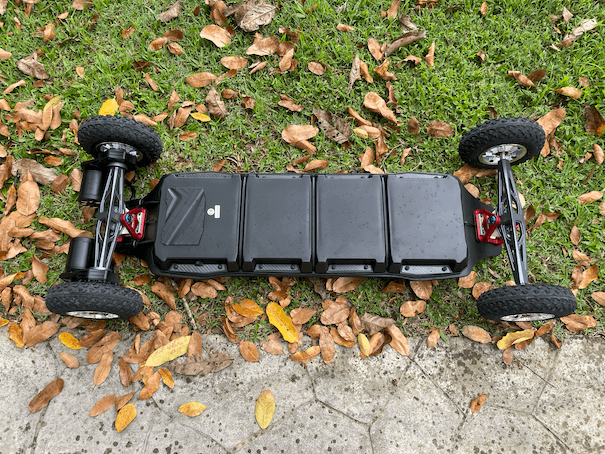

Bigger batteries mean a thicker enclosure, but Acedeck’s design ensures the enclosure remains flexible, maintaining the deck’s natural flex and improving ride comfort.

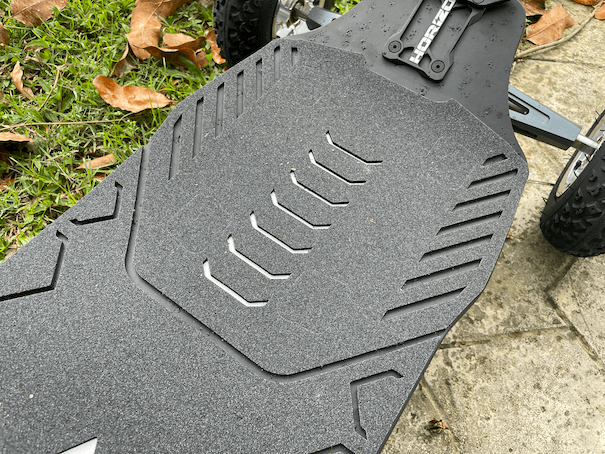

Deck Design & Features

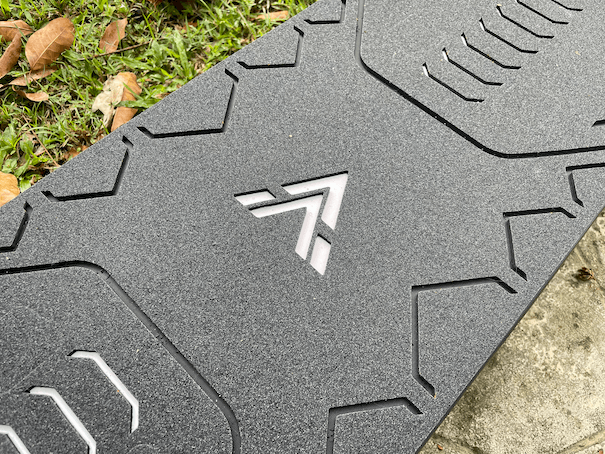

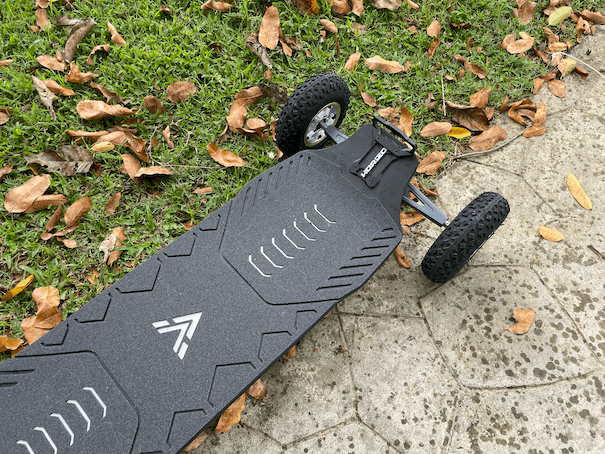

The deck is another highlight of the Horizon. Made from a combination of maple and fibreglass, it’s both durable and slightly flexible.
It has a mild concave in the middle and raised edges along the sides, which ensure secure foot placement even at high speeds. The deck is also very wide, providing a stable platform for confident riding.
To enhance comfort, it comes with EVA foam grip tape, which feels great on longer rides. Plus, like other high-end Acedeck boards, the deck features pre-drilled holes for foot bindings, in case you want to take your off-road adventures to the next level.

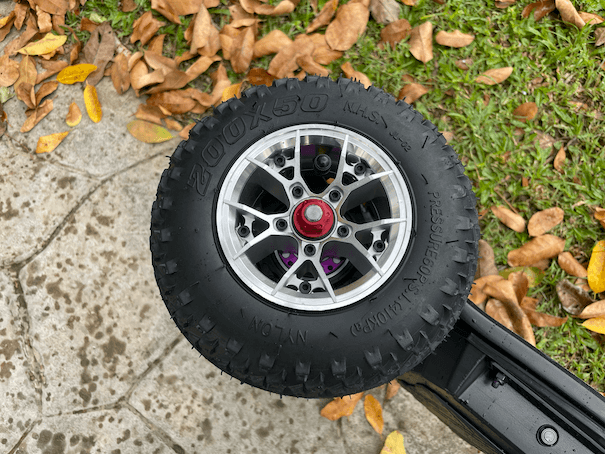

Tires & Wheels

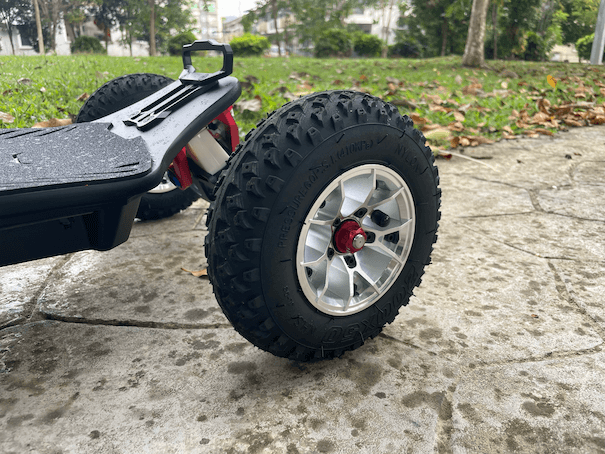

The Horizon has two-wheel setups. The lower-tier model has 8-inch wheels, while the higher-tier model uses slightly larger 8.5-inch wheels for better ground clearance.
The 8-inch wheels provide more than enough clearance for road use, but the 8.5-inch setup is a nice upgrade if you plan to ride off-road frequently. Both versions use pneumatic tyres with CNC aluminium hubs, which not only look sleek but also improve durability.

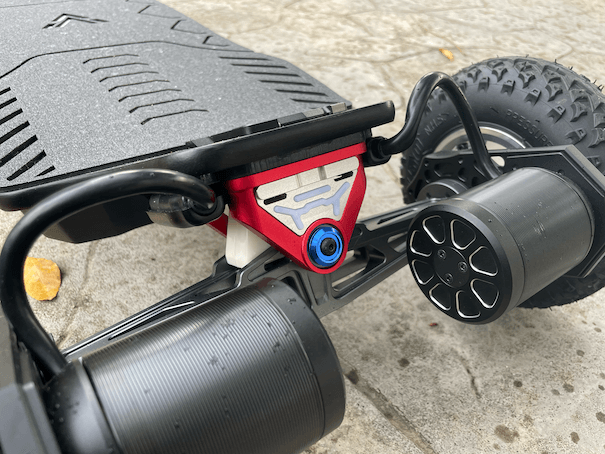

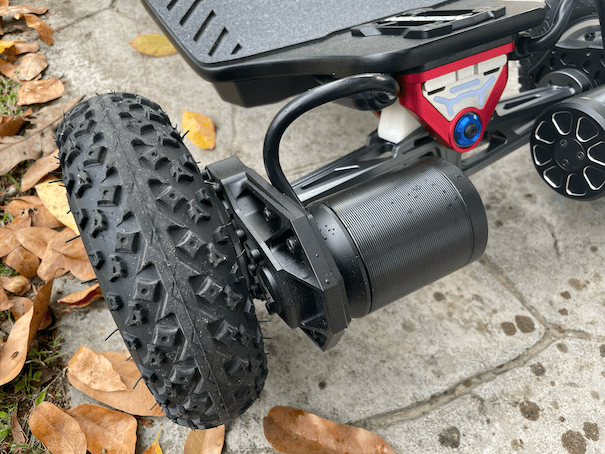

Motors & Drive System

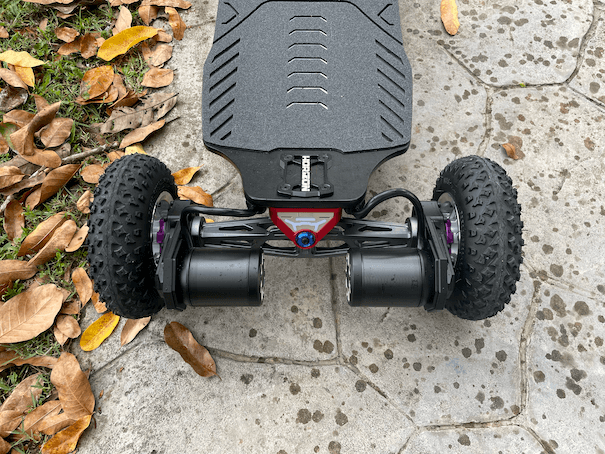

Now, let’s talk about power. The Horizon comes with two motor configurations. The base version features DXW 6384 motors rated at 4500W each, while the higher-tier version upgrades to DXW 6890 motors rated at 7500W each. Both are 150KV motors.
The base model has a gear reduction of 4.0, delivering a top speed of 37.5 mph (60 kph). The higher-tier version has a gear reduction of 4.3 and hits a blistering top speed of 43.75 mph (70 kph).
Acedeck’s ELEMENT AT GearDrive 4.0 system is compact, efficient, and fully enclosed to protect against dust and debris.
ESC & Remote Features
The Horizon uses a 14S custom ESC, which we suspect is based on the Hobbywing ESC. It has four-speed modes and smart turn-on features for added convenience.

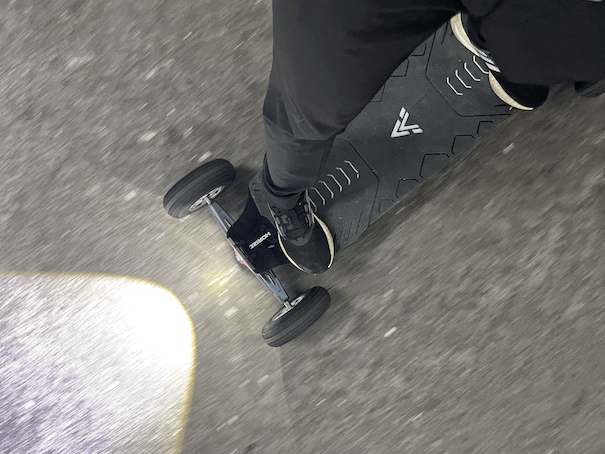

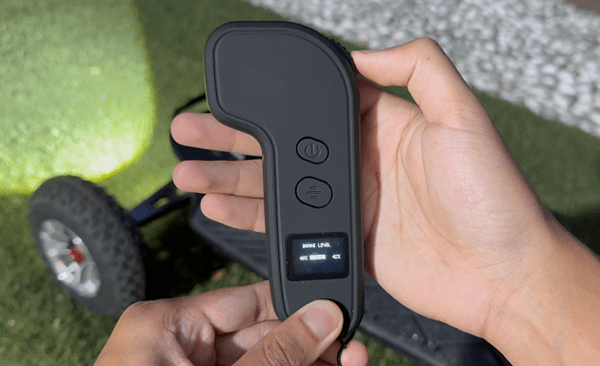

The remote allows customization of brake levels, speed modes, and even lighting. The front light features a high-beam white LED at 1600 lumens which is pretty bright! There’s also a yellow low-beam option and tail lights that are constantly on and flash rapidly when braking.
Specs Summary – Acedeck Horizon
The Horizon series is designed to be an ultra-premium product for the most dedicated electric skateboard enthusiasts. While premium products often carry a price tag that exceeds their specs, this is not the case with the Acedeck Horizon.
Think about it—the Lacroix Nazare, one of the boards that made this form factor famous, was $3300 when it launched. It is a lesser board in every way compared to the base version of the Horizon, which costs $1300 more. Lacroix owners love their boards, so it’s easy to imagine that anyone who owns the Horizon will love it even more.
Riding Experience on the Acedeck Horizon

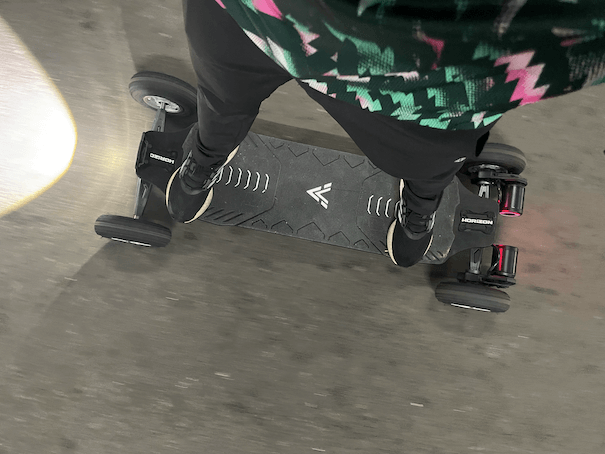

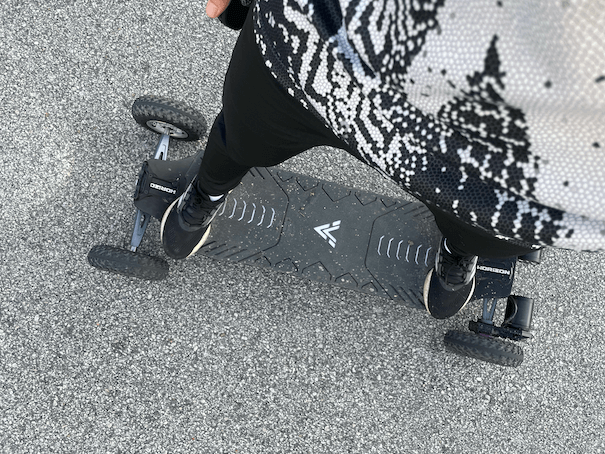

Out of the box, the first thing you notice is how easy this “freight ship” is to turn. It’s a big board, but making L-turns on it is no problem. Carving is easy and fun, though you do lose some high-speed stability. Of course, if you are mostly riding at high speed, you can always tighten the trucks.
After testing three different trucks, the Nyx Z3, Nomad N3, and now the Horizon, we’re impressed with Acedeck’s ability to make large trucks responsive. It’s a pleasant surprise that trucks like these are compatible with city riding, which requires sharp turns.
Check out our review of the Acedeck Nomad N3.
As a side note, the channel truck and suspension truck are similar in responsiveness, so you don’t need to overthink your choice.
The ride is very comfortable, almost like riding on cushions. Although the board is heavy, it feels surprisingly light when cruising.
For urban commuting, the Horizon is capable but not the most practical option.
While it ignores any road imperfection and even lets you ride up a curb, its size and weight were too cumbersome for quick errands, like grabbing a coffee. But for those who enjoy turning heads, this board is a showstopper.
The vehicle’s off-road capabilities are decent, handling dirt paths and light gravel with ease. However, for intense off-road adventures, a mountainboard-style setup like the Nyx Z3 may be a better alternative.
The best way to enjoy the Horizon is, as the name suggests, on open roads with a view of the horizon. That’s where you can fully experience the board—its high speed, smooth ride, and seemingly endless range.
Verdict on the Acedeck Horizon
If you’re looking for the pinnacle of electric skateboards, the Acedeck Horizon is it. Unlike many luxury products that are expensive for the sake of being expensive, this board justifies every dollar with premium build quality, exceptional performance, and unmatched specs.
Most people don’t need the Horizon, but I’m sure everyone wants it. If you’re lucky enough to own one, you won’t be disappointed.
